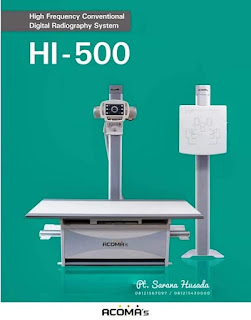

ACOMA X-RAY HI 500 kapasitas 500 mA

          GENERAL X RAY HI 500

		ACOMA X RAY
	General X Ray, merupakan modalitas Radiografi  yang paling Serba Guna dan strategis dengan kapasitas 500 mA , bisa menjawab tantangan untuk semua pemeriksaan X Ray , baik Abdomen, Lumbal hingga pemeriksaan X Ray dengan kontras media

X-RAY ACOMA HI 300

Di bawah ini adalah spesifikasi teknis untuk acoma HI 300.

Bassic Spek HI 300 :



COMPACTABLE SYSTEM

New concept of high performance general radiographic system. One-body system of X-ray control system and high voltage generator, easy to move and can be installed in the small area

EFFICIENCY

Multiple-positioned radiography function ismore comfortable to the patient. User-friendly and a small radios of action is one of good point. Easy to lateral radiography as tube arm revcives 180 and table top is flat

INNOVATIVE FUNCTION

 High frequency type radiography system with versality and high performance. Versality and excelent Radiography system for whole parts of body. All system is controlled by microprocessor program. It shows its best ability as a circuit-integrated system



Technical Spesifications

Type	Radiology type
MODEL	HI – 300
Constan Output (kW)	32 kW
kV (Rad)	125/150 kV (optional)
mA Range	10 – 400 mA
Exposure Time (sec)	0,001 - 10 sec
mAs Range	0,1 – 500
APR	216
Power Supply	20 kW, Single Phase
AEC	Optional
Standart Casette	Yes
Line Power	220 / 240
Input Frequency	50 / 60
Tube Stand	Floor Mounting / Ceiling system Optional
Buky stand (Optional)	Up / Down Electromagnetic system
Table	Table 4 way / Table 6 way optional / Fix Table optional





















Untuk Brosur dan surat dukungan  dan presentasi , silakan hubungi :

SARANA HUSADA JAYA  PT. JAKARTA ,  SEMARANG , YOGYAKARTA Phone / Fax    :           (0286 – 323662) Handphone    :           08121567097 Email               :          smartmedica@yahoo.com Website          :           www.saranahusada.com
